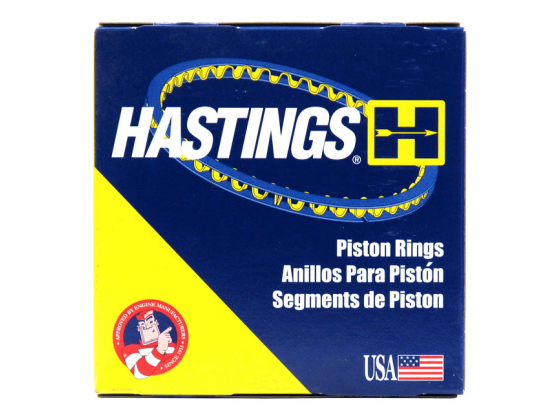

HASTINGS, 3-1/2" BORE PISTON RING SET. CHR/MOLY. STD

HASTINGS, 3-1/2" BORE PISTON RING SET. CHR/MOLY. STD

Stempel Ringer

503,-

Lagerstatus: På lager
Antall
Varenummer 908645
Leverandørens varenummer 2M 6164
Modellnummer 908645
Merke HASTINGS
Beskrivelse
Std cyl. bore: 3.4980" (88.85 mm). 1st. ring: 1.6mm. 2nd ring: 1.6mm. oil ring: 4.0mm. Tech tip: Piston grooves vs piston rings. It's not difficult to determine if a Hastings piston ring set will fit a certain piston. You should measure the height of the piston groove in the piston itself. The 2 top grooves will be for compression rings, the lower groove will be for the oil ring. In most cases Hastings oil rings are of the low tension 3-piece flex vent type. Ring heights are listed for reference. Tech tip: Piston oversizes. For each oversize cylinder diameter will increase with .010" (0.254mm). The standard bore of the cylinder is listed for reference. (Information provided by Hastings Manufacturing Company, Inc.). 2M 6164
