AXEL JOOST ELEKTRONIK

Viser av varer
Utsolgt

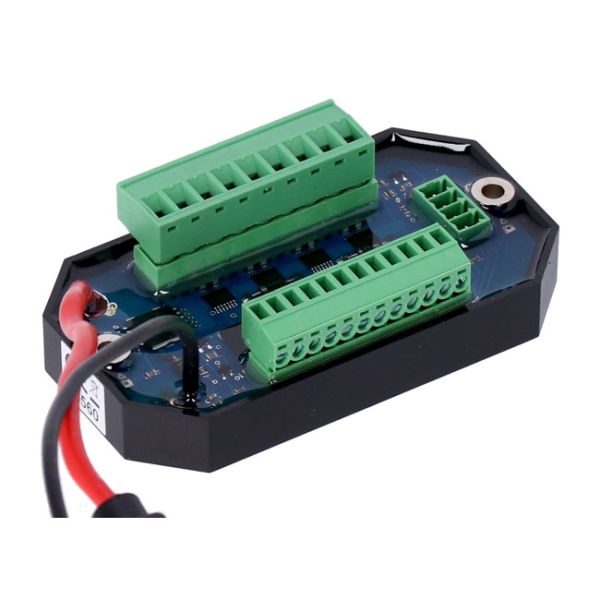

AXEL JOOST ELEKTRONIK, B-BOX BRAIN BOX
AXEL JOOST ELEKTRONIK, B-BOX BRAIN BOX
2.739,-
Merke: ELEKTRONIKBOX
Controlbox (Box-B brain box) with screw connectors. Perfect if sufficient room is available and a quick wiring installation is required. Can be used with the Axel Joost RFID or Bluetooth module for a keyless 'ignition-on' operation. Functions: - Ignition (with or without side stand switch control) via ignition switch or the optional RFID-module (954156) or Bluetooth (954157) module - Switch output, for parking light etc. - Starter (with or without neutral switch control) - Headlamp with button or switch control - Turn signal relay, controlled with buttons or switches - Brakelight with selectable flasher function - Horn - Dimensions: 92 mm x 50 mm x 36 mm including connector terminals - Body material: shock resistant ABS plastic, waterproof poured resin - Case Color: Black - Main connections: 2.5 qmm - Power consumption in standby: About 0.2 mA - Maximum ambient temperature: 80 degree Celsius - Maximum output current: 5 Ampere / output - Input voltage range: 7 - 18 Volt - Maximum current / Box: 20 Ampere. Note: See 954156 RFID antenna for this B-Box. Allows you to switch-on ignition without a mechanical key. Offers plug & play installation ease.
Vis mer
MINI HEADLAMP RELAY
MINI HEADLAMP RELAY
779,-
Merke: ELEKTRONIKBOX
Push button controlled switching between high and low beam. With two power outputs of 60W each. Another option is switching on/off 120W total. Works with 7-18 Volt. Dimensions: 38mm x 16mm x 11mm. Fits: > Univ.
AXEL JOOST ELEKTRONIK, BRAIN BOX H
AXEL JOOST ELEKTRONIK, BRAIN BOX H
2.032,-
Merke: AXEL JOOST
Basic brain box; Input voltage: 7 - 16 Volt; Connections: Control unit 0,5mm², user 1 mm², with 10 cm long wires; Max Amp. from 12V connection: 15 Amp.; Dimensions: 40 mm x 12.5 mm x 25 mm. When building a bike, or fully replacing the electrical wiring of an existing motorcycle, a brain box is a good option for a simple, solid and dependable wiring system. Lights are dimmed at starting. The brain boxes with handlebar wiring adapters simplify wiring and make it almost invisible when compared with some other brain boxes on the market. Housing is polycarbonate, waterproof cast with epoxy resin. Max. ambient temperature is 100 degree Celsius and maximum output is 5 Amp. per exit and 3 Amp. for horn. Compatible with miniature pushbutton control knobs that function with super thin wiring. Brain boxes can easily be tie-wrap clamped to frame tubes or similar. All come complete with super clear installation instructions. Note: Connecting starter motor directly on brain box will cause damage. The H-D starter motor takes 10Amp for the solenoid to switch and requires an additional small automotive relay between starter output of the brain box and the starter solenoid.
