Dynamo
7.679,-
Modellnummer: 29975-65B.
Merke: Cycle Electric
Cycle Electric, 12-Volt generator. Black Description OEM style reproduction for stock style restaurations. USA made. OEM replacement for 29975-65B. Will also fit 36-84 H-D when converting to 12 Volt. Note: When replacing 65B generator (82-84 Hitachi), add H-D #31035-58 (MCS 555773) oil deflector. Same gear can be re-used. Tech tip generator polarizing: With the motor off connect the 'F' terminal to ground and momentarily flash the 'A' terminal with positive. Remove ground from 'F' terminal. If you have properly installed a working regulator it will turn on and ground the 'F' terminal in which case you will not need to use an external ground. Caution! Do not flash the 'F' terminal. This will damage the regulator. Do not connect the battery to the Field (F terminal) as this will polarize the generator backwards. Generators in general don't forget their polarization so it is not necessary to polarize a generator from Cycle Electric Inc. unless it was connected to a battery backwards or inadvertently polarized backwards after it left the factory. Only after a long time period generators can struggle to come up and polarization can be a good idea. Tech tip maximum generator amperage: The model -65A 12 volt generator is rated at 10 amps. It is capable of producing 25 to 30 amps. If you draw 20 amps. out of a 10 amp. generator it will burn-up within 20 minutes. It is the regulator's job to limit the amps. that are drawn from the generator to 10 amps. We recommend testing your regulator when installing a new generator. Also, some regulators do not regulate amps. These should not be used. All Cycle Electric regulators will insure correct amperage regulation. Fitment 65-69 Big Twin; 65-81 XL Sportster (NU)
130,-
Modellnummer: 29911-82.
Merke: JAMES GASKETS
JAMES, OIL SEAL. GENERATOR END CAP OEM replacement reference 29911-82. PR STK Fits: > 82-E84 XL (NU)
15,-
Modellnummer: 30143-58.
Merke: JAMES GASKETS
AMES, GENERATOR MOUNT GASKET .031" thick paper. OEM replacement reference 30143-58. Fits: > 58-69 FL; 58-E84 XL. With 2-brush generators (NU) Pr stk
149,-
Modellnummer: 31035-58
Merke: MCS
OIL DEFLECTOR Used on generator. OEM replacement reference 31035-58 Fits: > 58-69 FL; 58-81 XL (NU)
419,-
Merke: MCS

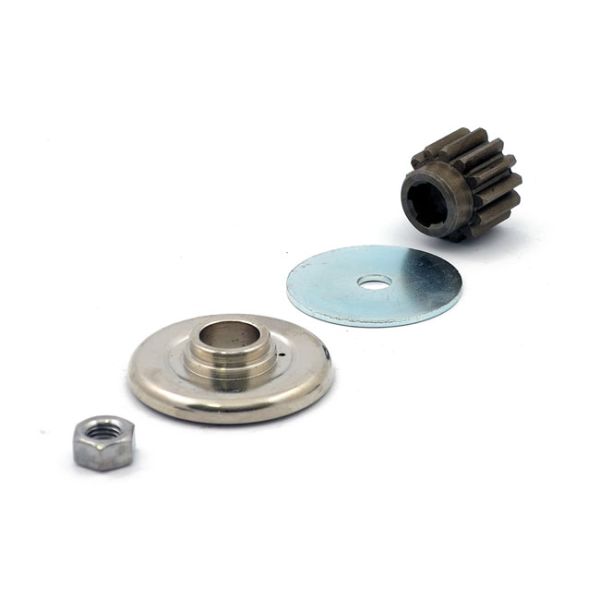

GENERATOR GEAR KIT, 13 TOOTH OEM style replacement. Complete as shown. Fits: > 58-69 B.T. (NU)
Utsolgt
6.497,-
Modellnummer: 29975-65B
Merke: MCS

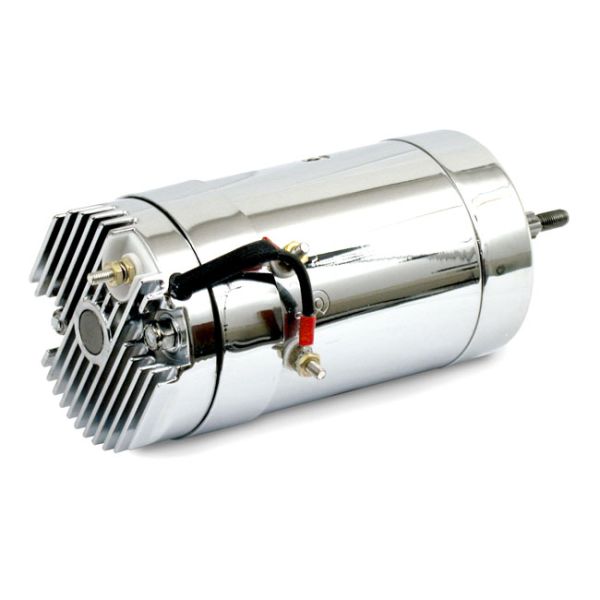

GENERATOR 12V. WITH BUILT-IN REGULATOR. IMPORT. CHROME Comes with built-in electronic voltage regulator. OEM replacement reference 29975-65B. Note: See 977596 (chrome) or 978651 (black) for replacement regulator only. Fits: > 65-69 B.T.; 65-81 XL (NU)
73,-
