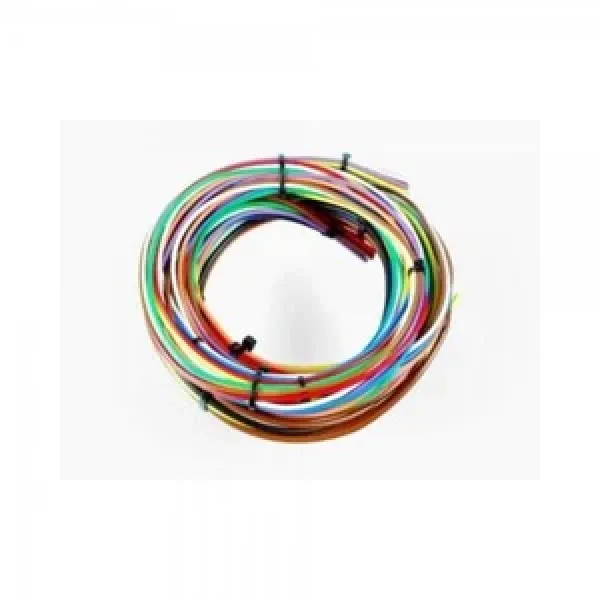

With 40A fuse. An optional battery cable kit for connecting the mo.unit (560671 Basic or 560670 Blue) to the battery. Overall cable length is 160cm. On one side the eyelet and heat shrink tubing is installed, the other eyelet is included and must be crimped to the cable after the cable is cut to the desired length. Kit includes 1x cable with installed eyelet and 2x eyelets, 2x heat shrink tubing and 2x 40A fuses. Note: See 925379 for a replacement 40A fuse.

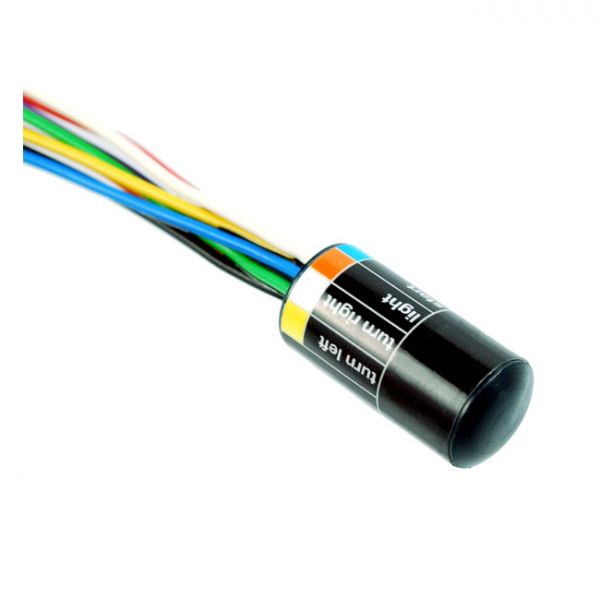

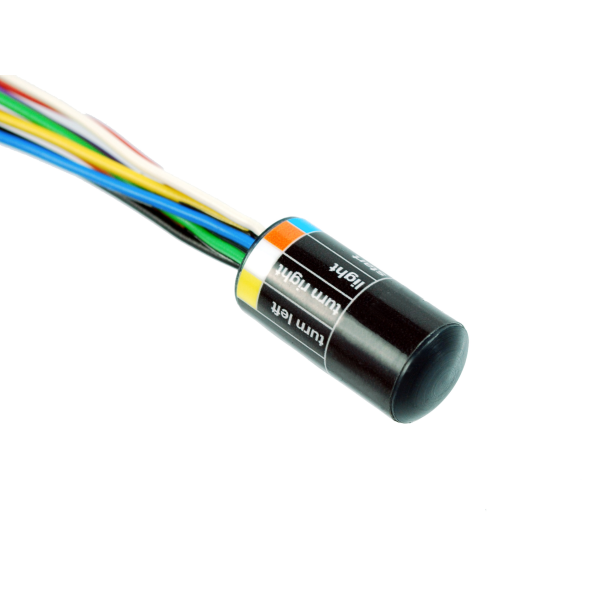

An item that can, optionally, be used in combination with the mo.Unit to simplifly your wiring harness by using the digital Bus-technology. You will be able to send several signals, from the 560671 mo.unit Basic or 560670 mo.unit Blue, through one single wire, to the mo.button. The mo.button can be mounted in the handlebar and from the mo.button several wires will go to the controls like turn signal left, turn signal right, lights, start, horn and front brake.
Works in combination with the m-Unit to reduce cable clutter
Electronically connects all handlebar instruments, switches and buttons and transmits their signals to the m-Unit over a thin cable
Can be integrated into the handlebar tube or any other suitable location
Equipped with connections for: left and right turn signals, high- and low-beam headlights, E-starter, horn and front brake light switch
