Brand KLOCK WERKS
Vendor part number KW05010259
Base Finish E-Coating
Color/Finish E-Coating
Contour Length 1276,35 mm (50,25")
Fender Width 165,10 mm (6,50")
For Frame Raked
For Wheel Size 584,20 mm (23,00")
For Wheel Size Imperial 23.00"
For Wheel Size Metric 584.20 mm
Height 419,00 mm (16,50")
Inside Mounting Width 160,34 mm (6,3125")
Inside Mounting Width Imperial 6.3125"
Inside Mounting Width Metric 160.34 mm
Material Steel
Model Benchmark
Mounting Position Front
Outside Mounting Width 165,10 mm (6,50")
Outside Mounting Width Imperial 6.50"
Outside Mounting Width Metric 165.10 mm
Product Name Fender
Straight Line Length 933,45 mm (36,75")
- 190mm wide. - 335mm radius. - 103cm long. - 1.5mm thick. Round top styled. Designed for bikes without suspension (rigid frames), where the fender can be mounted closer to the tire. A special, smaller, radius is used to let the fender 'hug' the tire better, to get that cool low-down custom look that only a rigid frame can provide. Note: Length is measured around the radius. Width is measured from inside to inside and mentioned for reference only. Note: Designed for use with 170/80-15 series tires.
Description
Uncoated raw steel.
Riveted brackets, like stock.

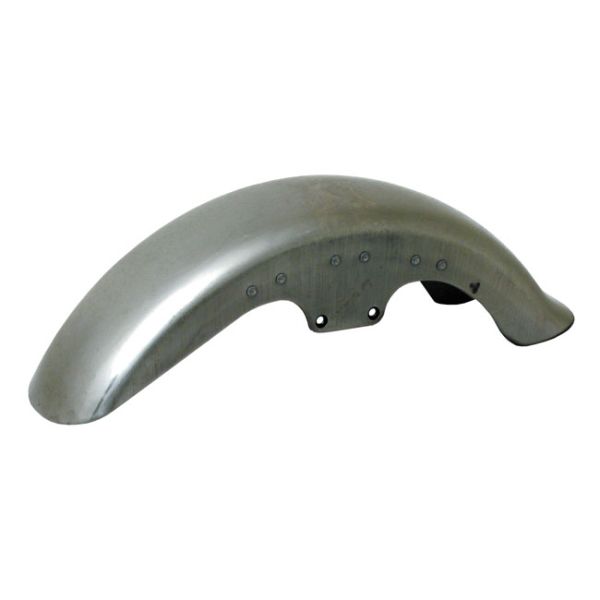

OEM reproduction style for 90-96 Fatboy models, but will also fit 97-99 FLSTF.
Ideal for stock replacement, but can be used in many custom applications in combination with 16" front wheels and FL, FXWG, FXST, FLST type forks.
OEM replacement reference 59139-89
Fitment
90-96 (NU) Fat Boy; Most FL, FXWG, FXST with 16" wheel
- With provision for the ECU - Fender is manufactured with 10mm offset for use with OEM frame and swingarm Steel fender with approval - Fender struts that are welded to the inside of the fender for a smooth result - Manufactured with a BK Stiletto fender as base - The 'Inside Width' size is the distance between the left & right inside of the fender (strut) Note: Due to manufacturing tolerances slight modifications may be required. Fitment checks advised. Note: A custom fabricated seat is required. A special NCC custom seat base plate for a custom seat is separately available as 904017 for 87-17 Softail Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.
Fits: > 00-05 Softail in custom applications (NU)
