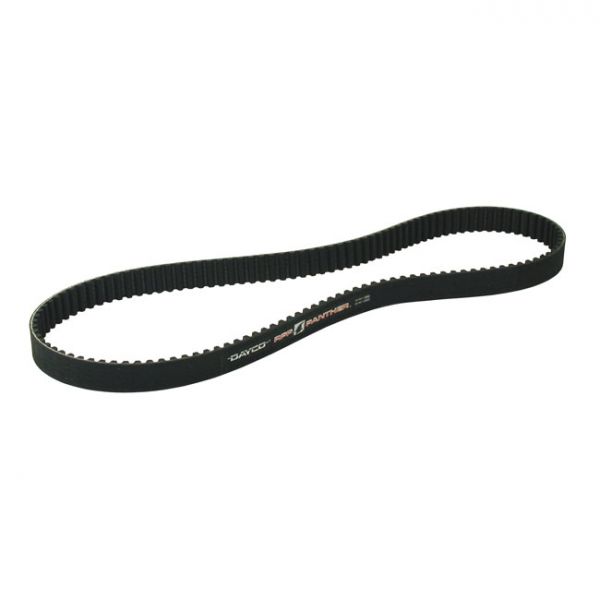

Panther, replacement rear belt, 14mm, 1-1/8" wide, 130T
Models with 32-64 drive ratio. Panther belt by Dayco. Neoprene rubber backing, which rejects abrasive wear and allows less vibration when compared with stock belts. OEM replacement reference 40048-07
Fits: > 07-17 Dyna (Japan models with 32-64 drive ratio only) (NU)
Carbon fiber reinforced Goodyear engineered Falcon SPC™ belts offer up to 33% more tensile strength than conventional aramid reinforced belts
High-temperature rubber compound offers excellent flex and long service life
Fabric reinforced belt tooth surfaces improve wear resistance
Durable material construction is designed to withstand belt-penetrating debris without breaking
Made in the USA
No warranty claims are made or implied.
Oem. 40046-07

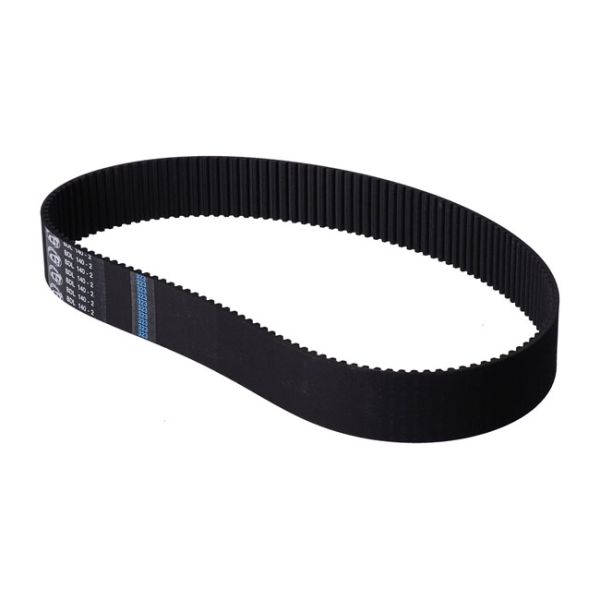

BDL, REPL. PRIMARY BELT. 1-1/2", 132T+ (PLUS), 8MM PITCH
This is the so-called '+' belt. For the '-' belt see 506915. Note: The difference in belts between 65-78 and 78-83 FL, FX models is due to a minor difference in primary housing length. Available belts are therefore designated as a - (minus, slightly shorter / MCS 506915) or + (plus, slightly longer / MCS 970974) belt, although the number of teeth is identical.
Fits: >
Carbon fiber reinforced Goodyear engineered Falcon SPC™ belts offer up to 33 percent more tensile strength than conventional aramid reinforced belts
High-temperature rubber compound offers excellent flex and long service life
Fabric reinforced belt tooth surfaces improve wear resistance
Durable material construction is designed to withstand belt-penetrating debris without breaking
Made in the U.S.A.
No warranty claims are made or implied.

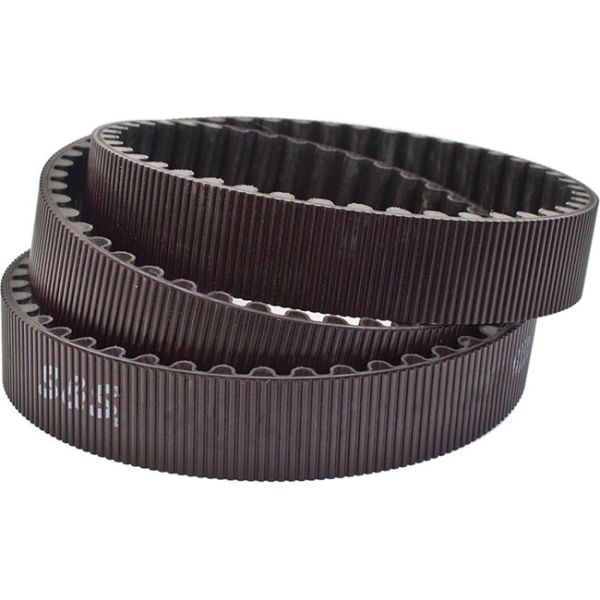

S&S, rear belt XN7 carbon cord. 1" wide, 137T
The Gates Poly/Carbon X7N material features a strong carbon tensile cord that offers minimal stretch while providing exceptional strength and load-bearing capacity. Its durable polyurethane construction is resistant to chemicals, oil, pollutants, and abrasion. USA made. OEM replacement reference 40024-07 & 40591-07
Fits: > 07-08 FLT/Touring (with 32/66t drive ratio); 07-22 XL1200 models; 11-22 XL883 models; 2007 XL50; 08-12 XR1200 (NU)
S&S, rear belt XN7 carbon cord. 24mm wide, 140T
The Gates Poly/Carbon X7N material features a strong carbon tensile cord that offers minimal stretch while providing exceptional strength and load-bearing capacity. Its durable polyurethane construction is resistant to chemicals, oil, pollutants, and abrasion. USA made. OEM replacement reference 40024-09, 40024-09A
Fits: > 09-24 FLT/Touring (excl. 2024 FLTRXSTSE) with stock 32-68 drive ratio
S&S, rear belt 14mm, 1-1/8 inch, 128t
X7N carbon cord. S&S belts by Gates. Featuring Gates' super strong X7N carbon tensile cord material which is significantly stronger than the Aramid (Kevlar) material used in Gates poly belts. OEM replacement reference 40022-91
Fits: > 91-03 XL Sportster; 86-03 XL with rear belt conversion kit (with 61t. rear pulley) (NU)
