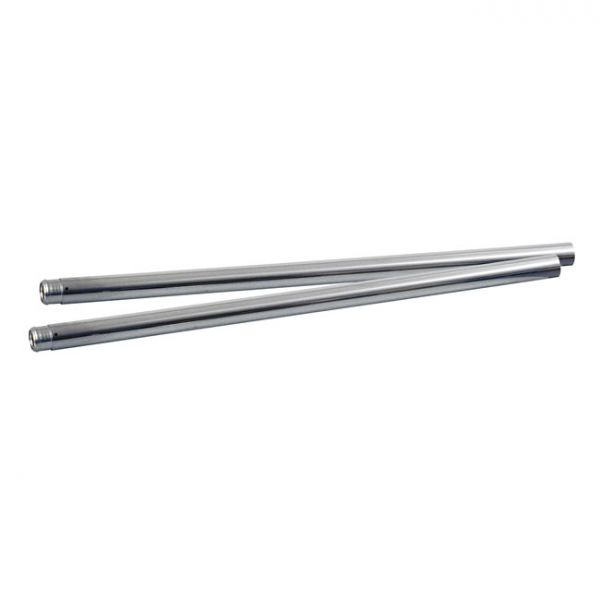

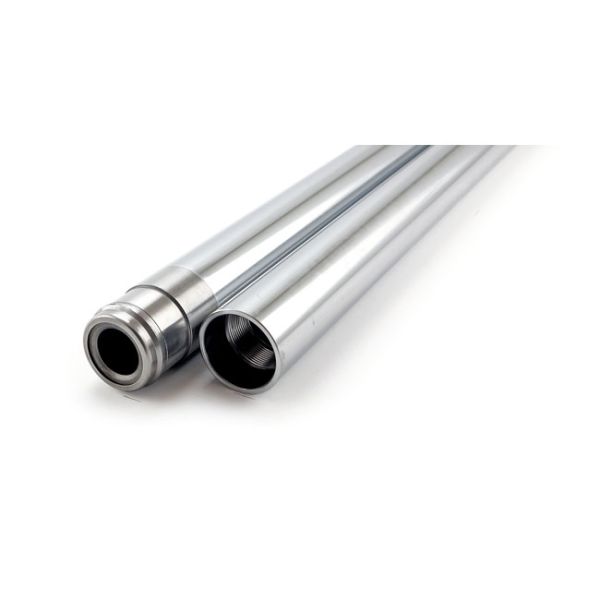

Fork tubes 41mm, 24-3/8".show chrome
Description
Standard length for 00-15 all FXST; 00-05 FXDWG models. Replacement for OEM 45417-00.
Quality imported fork tube set.
With a Show Chrome, mirror like polished finish.
Note: For 00-10 Big Twin models longer or shorter lengths please see 84-99 FXWG,
FXST, FXSTC type fork tubes. These are basically identical tubes. Difference for
00-10 models is found in a damper system which is slightly smaller in diameter and
the standard length is slightly different, but 84-99 style tubes will still fit.
Fitment
00-15 FXST; 00-05 FXDWG (NU)

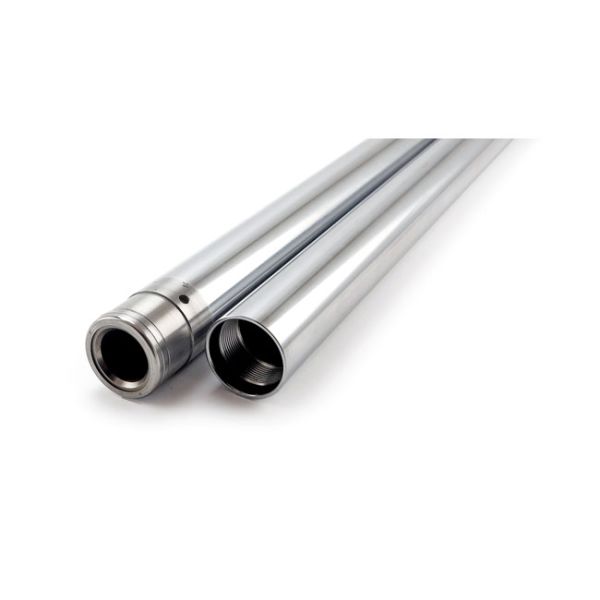

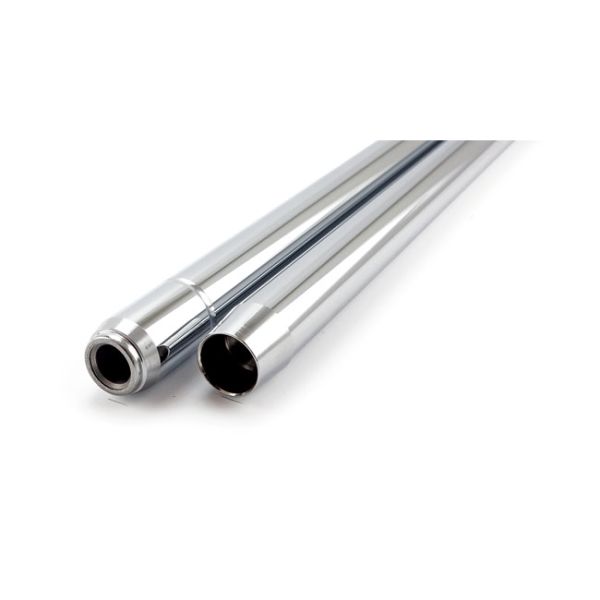

FORK TUBES 39MM, 29-3/8". SHOW CHROME
29-3/8" overall length. Quality imported fork tube set. With a Show Chrome, mirror like polished finish. 23-3/8" is standard length for 88-03 XL (excl. 92-03 Hugger, see note); 87-94 FXR models (39mm type). Repl. 45381-87 and 45395-97. 25-3/8" is standard length for 87-94 FXLR, 87-92 FXRT models. Repl. 45393-87. Note: These tubes will not fit 92-06 Hugger models unless the fork tube dampers are replaced by the earlier type. The early type damper is available as OEM 45925-88 / MCS 990647.
Fits: > +6" overstock: 88-03 XL; 87-94 FXR (NU). +4" overstock: 87-94 FXLR, 87-92 FXRT models (NU).
