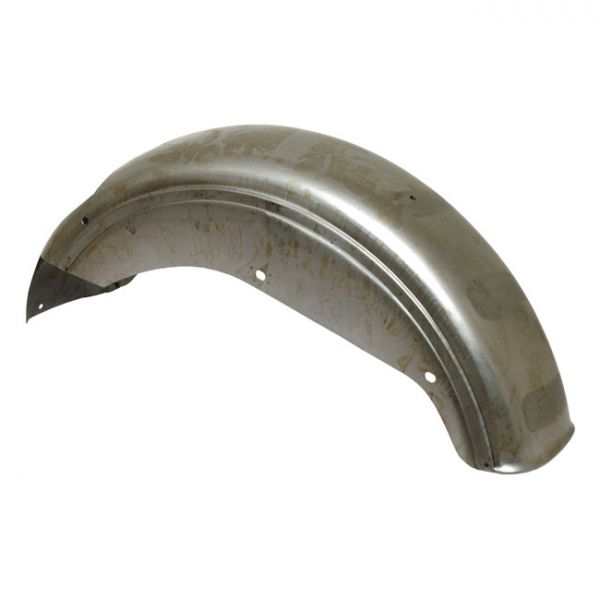

58-84 FL custom hinged rear fender
Description
Raw uncoated steel.
Custom version of the stock FL style fender but without the OEM taillight mount, for a custom smooth finish.
Fits 58-84 FL models directly and 71-84 FX models when FL style fender struts are used.

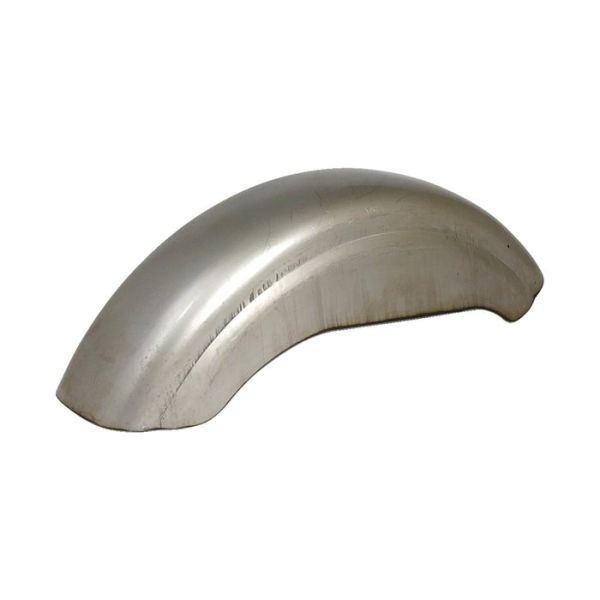

Custom 86-03 XL Sportster rear fender
Description
Raw steel. No pre-drilled mounting holes for best custom mounting. Approx. 30" long and 7" wide
Fitment
86-03 XL Sportster (NU)

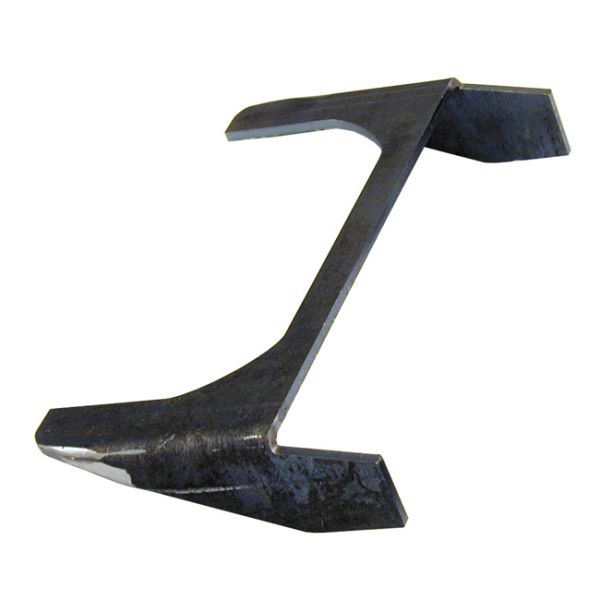

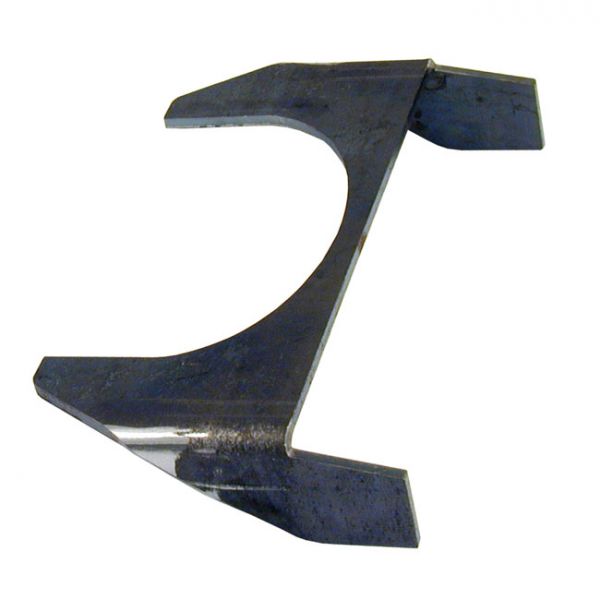

BK Stiletto base strut, for 240-270mm wide fenders
Universal fender struts for BK Stiletto fenders. Will help make an easy, strong and good looking connection between fender and Softail frame. The side struts can be mounted on the outside of fender, or when preferred, on the inside when the side struts are modified. Base and side struts can be welded together, after making modifications when necessary, to make them fit any individual Softail perfectly. Designed for use with 909276 (long), 909277 (medium) or 909378 (short) BK side struts. Note: M8 Softails require more extensive modification to the base strut, due to the top shock mount as used on the M8.
Fits: > Softail in custom applications

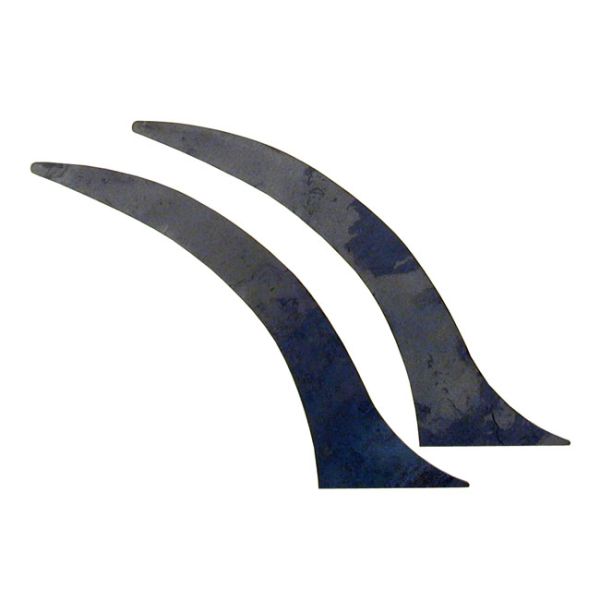

BK Stiletto side struts, medium (pair)
8mm thick; B= 237 mm / L= 209 mm. Universal fender struts for BK Stiletto fenders. Will help make an easy, strong and good looking connection between fender and Softail frame. The side struts can be mounted on the outside of fender, or when preferred, on the inside when the side struts are modified. Base and side struts can be welded together, after making modifications when necessary, which makes them fit any individual Softail perfectly. Used with BK base struts: - 565849 for up to 190mm wide fenders - 909279 for 190-22mm wide fenders - 909280 for 240-270mm wide fenders.
Fits: > Softail in custom applications

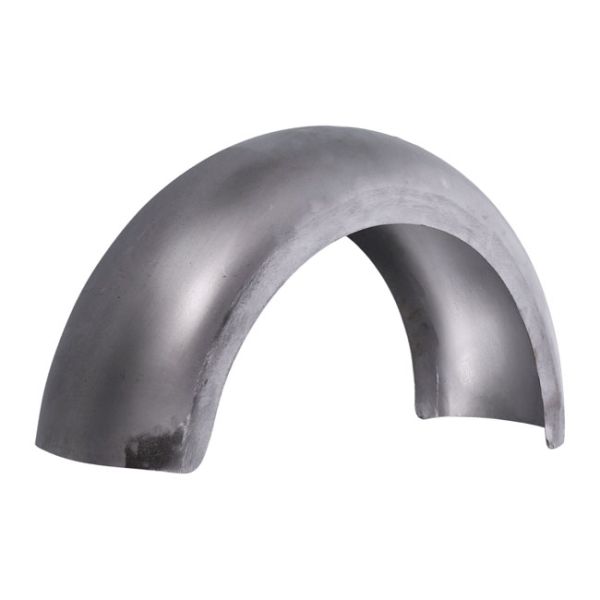

Rhino, custom rear fender. 23.5cm wide
23.5cm wide x 61cm long x 18cm high. Raw uncoated 2mm thick rear fender for use in custom applications. Dimensions are measured as: Width = Inside to inside fender. Length = Fender tip to fender tip. Height = The highest point, with fender on a flat surface. Note: Dimensions are approximate and for reference only. Small variations during production are possible.
Fits: > Universal

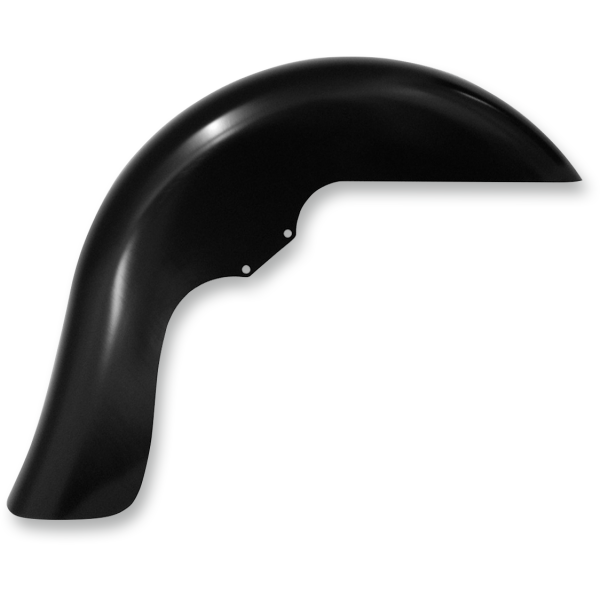

Brand KLOCK WERKS
Vendor part number KW05010259
Base Finish E-Coating
Color/Finish E-Coating
Contour Length 1276,35 mm (50,25")
Fender Width 165,10 mm (6,50")
For Frame Raked
For Wheel Size 584,20 mm (23,00")
For Wheel Size Imperial 23.00"
For Wheel Size Metric 584.20 mm
Height 419,00 mm (16,50")
Inside Mounting Width 160,34 mm (6,3125")
Inside Mounting Width Imperial 6.3125"
Inside Mounting Width Metric 160.34 mm
Material Steel
Model Benchmark
Mounting Position Front
Outside Mounting Width 165,10 mm (6,50")
Outside Mounting Width Imperial 6.50"
Outside Mounting Width Metric 165.10 mm
Product Name Fender
Straight Line Length 933,45 mm (36,75")
