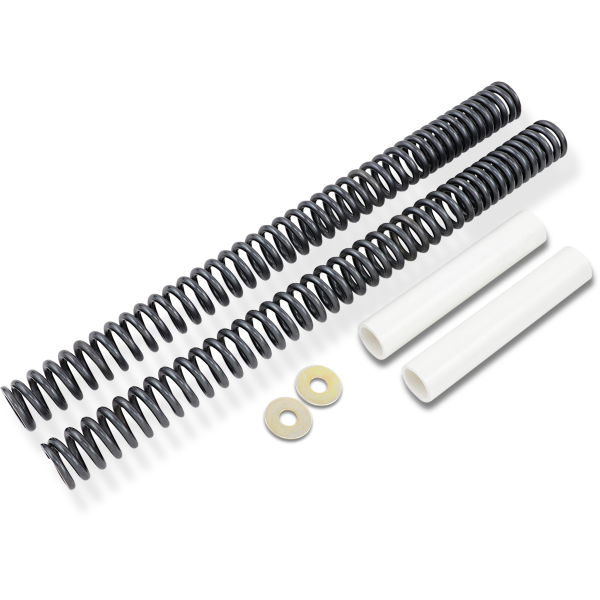

S FORK SPRING KIT STANDARD DUTY, 49MM
35-50 lbs/inch spring rate. Progressive rate fork springs of superior quality. Precision wound and made of high quality chrome silicon wire. Provides a smooth ride but the progressive rate helps prevent bottoming out when taking big bumps. Each kit comes with progressive fork springs and necessary spacers.
Fits: > 06-10 FXD Dyna; 06-17 FXDB, FXDF, FXDL; 06-17 FXDWG; 06-14 FXDC; 08-11 FXCW/C; 13-17 FXSB; 02-06 VRSCA; 07-10 VRSCAW; 2005 VRSCB; 06-08 VRSCD Night Rod; 07-11 VRSCDX Night Rod Special; 2007 VRSCX (NU)
Designed specifically for Harley models

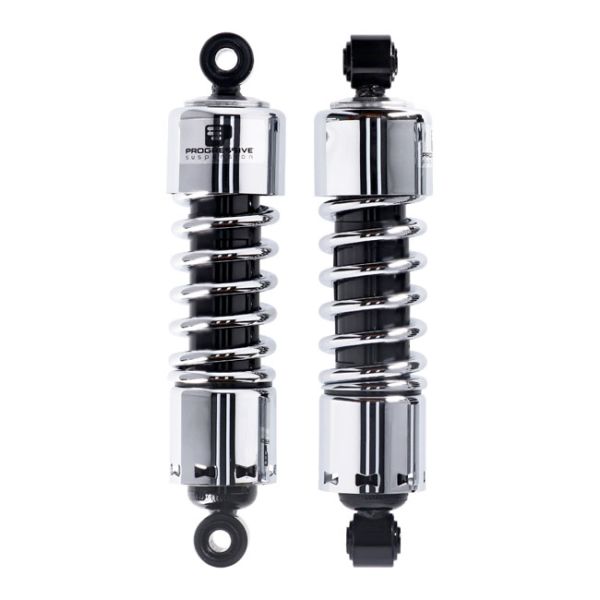

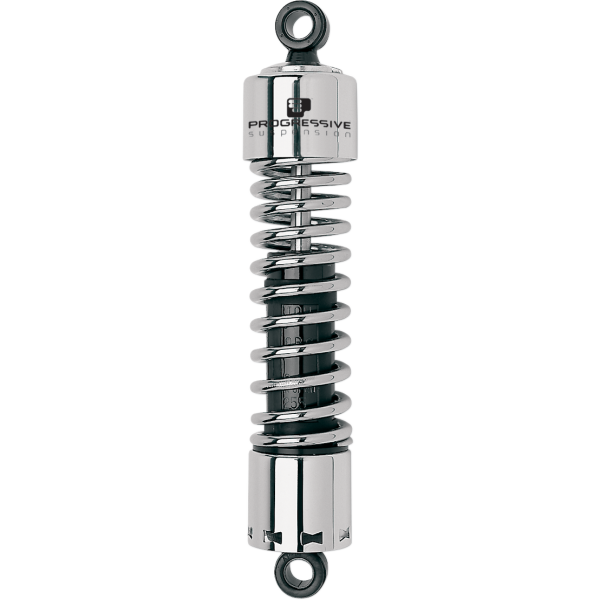

The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
A five position cam style spring load preload adjuster lets you easily dial in your ride
Some or all shocks listed are approved for road use. Refer to most recent certificate for current listing
There are multiple style options available, like full show-chrome or black covers; or either chrome or black springs and end caps
Made in the U.S.A
All shocks are measured center-of-eyelet to center-of-eyelet.
When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.
Extended Length 305,00 mm (12,00")
Material Steel
Model 412 Series without Covers
Mounting Position Rear
Product Name Shock Absorber
Progressive Spring Rate 1,60 kg/mm - 2,30 kg/mm (90,00 lb/in - 130,00 lb/in)
Reservoir Location Internal
Spring Type Single Progressive Rate
Type Coilover Monotube
Units Pair
Damping Method Gas Charged
Progressive springs offer a soft initial spring rate for a plush ride
Progressively wound design provides increased resistance to bottoming as spring compresses
Improve handling while retaining OEM geometry
Made in the U.S.A

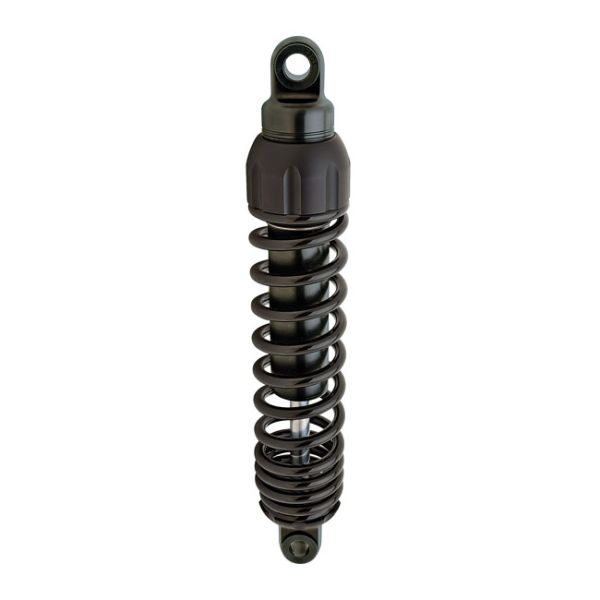

Black; Standard Duty; Target Ride Length: 11" (28cm); Stock length = 11.5" / 29.2cm Note: Target ride length is the length the shock should have once installed and as the bike will be ridden. That is with the rider in the saddle, including possible luggage or passenger. Increase or decrease spring pre-load accordingly to achieve Target Ride Length.
Fits: > 15-22 Indian Scouts 2 stk
Asymmetrical monotube damper kit with FST dampers. Spring rate and damping is pre-set. No modification to forks required. This true high performance Progressive Suspension asymmetrical monotube fork kit that features a set of gas charged road smoothing Frequency Sensing Technology (FST) dampers and custom tuned progressive rate fork springs. Offers better road holding, better resistance to front brake dive, less susceptibility to bottoming out and improved stability in cornering. Comes as a complete replacement kit including all internal fork components, apart from the fork tubes and oil. Note: Available in a standard and lowered height. See 974753 for lowered height.
Fits: > 14-16 Touring FLHR/C, FLHTC/U, FLHTK, FLHX/S, FLTRU/SE, FLTRX/S (NU)
35/50 lbs/inch spring rate. Progressive rate fork springs of superior quality. Precision wound and made of high quality chrome silicon wire. Provides a smooth ride but the progressive rate helps prevent bottoming out when taking big bumps. Each kit comes with progressive fork springs and necessary spacers.
Fits: > 93-05 FXDL; 94-00 FXDS; 91-92 FXDB/C; 87-94 FXRS; 88-94 FXRT, FXRS Conv. (NU)

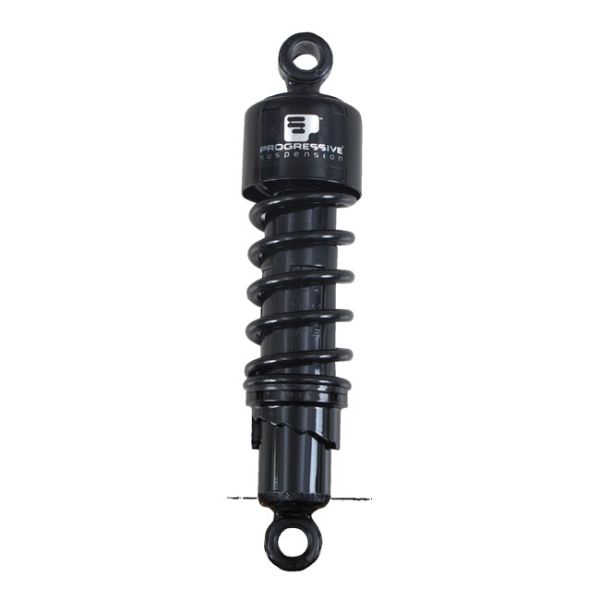

Heavy Duty. Best value Progressive Suspension shock, great as stock replacement. Nitrogen charged double steel wall body. Multi-staged velocity sensitive valving. Five position cam style pre-load adjustement. Without lower cover.
Fits: > 91-17 Dyna (excl. 12-16 FLD Switchback) (NU) Pris for 2 stk
Stock replacement bushings for Airtail and Model 422 series Progressive Suspension Softail shock absorbers.
Fits: > 89-99 Softail with Airtail or 422 series PS shock absorbers (NU)

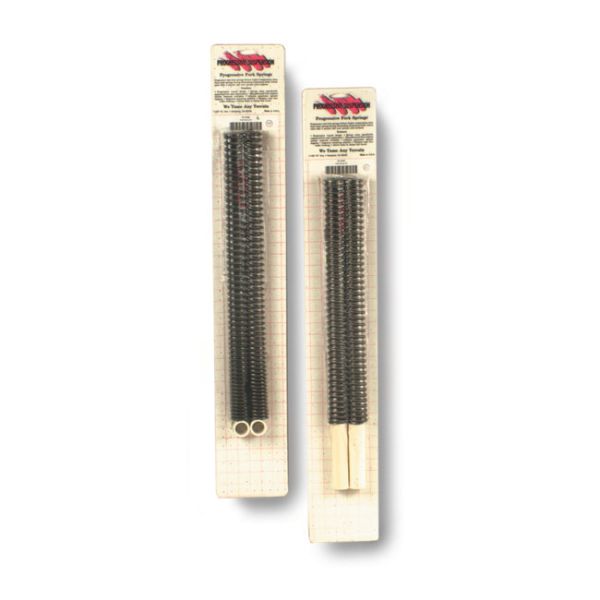

Progressive rate fork springs of superior quality. Precision wound and made of high quality chrome silicon wire. Provides a smooth ride but the progressive rate helps prevent bottoming out when taking big bumps. Each kit comes with progressive fork springs and necessary spacers.
Fits: > 49-86 FL, FLH (4-sp); 80-81 FLT (5-sp); 02-05 FLHR; 06-13 FLT/Touring (excl. Trikes); 84-15 FXST; 84-17 FLST; 80-86 FXWG (NU); 96-03 FXDWG (NU)
PS FORK SPRING KIT STANDARD DUTY, 41MM

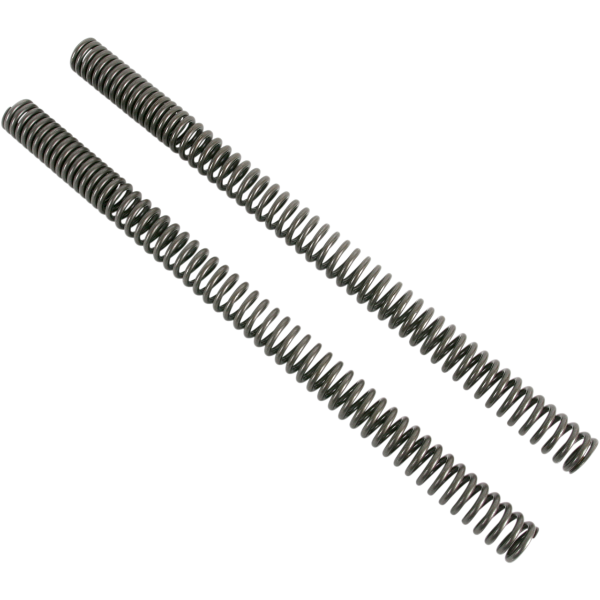

50-80 lbs/inch spring rate. Progressive rate fork springs of superior quality. Precision wound and made of high quality chrome silicon wire. Provides a smooth ride but the progressive rate helps prevent bottoming out when taking big bumps. Each kit comes with progressive fork springs and necessary spacers.
Fits: > 02-05 FLH, FLT (excl. FLHR models) (NU)
