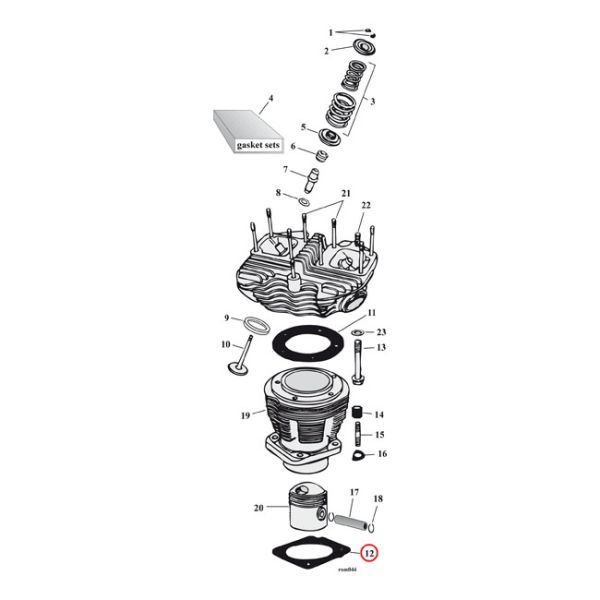

S&S, cylinder base gaskets. .020" graphite
.020" thick reinforced graphite. Fits front & rear. For standard 3-7/16" (1200cc) and 3-1/2" (1340cc) bore applications. Note: See 977852 for S&S head gaskets.
Fits: > 66-84 Shovelhead & S&S SH (Shovelhead) and P (Panhead) series engines
James, motor gasket kit. 45" Flatheads
0.020" embossed copper head gaskets. Includes both early and late side mount oil pump gaskets, and all other gaskets, seals and O-rings for a complete engine rebuild. Also included are intake/float bowl gaskets for Linkert carburetors. OEM replacement reference 17026-40 (53-40)
Fits: > 40-73 45" Flatheads, 750cc W/WL/G/GE models (NU)
S&S, top end gasket kit. 4-1/8" bore
4-1/8" bore SSW+ (Super SideWinder Plus). For use with S&S base pattern. Note: Designed for use with S&S engines. Note: Does not include a rocker cover gasket kit. This must be ordered separately.
Fits: > 99-17 S&S T-series (Twin Cam style) & 84-99 V-series (Evo Big Twin style) engines with 4-1/8" bore cylinders

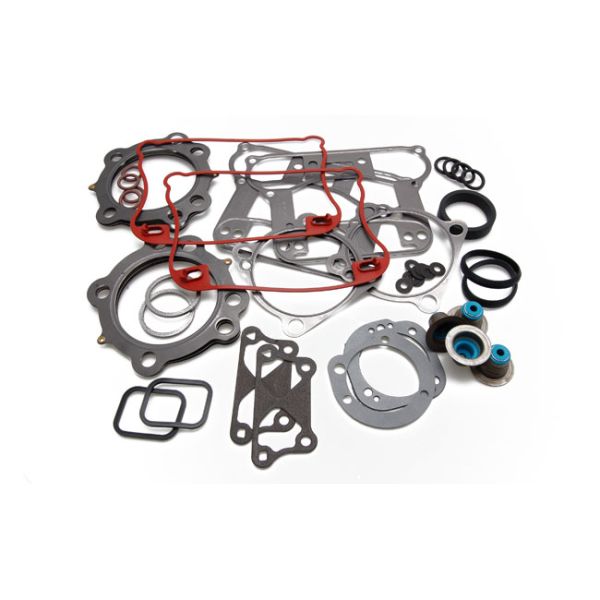

Cometic, EST top end gasket kit. XL1200
With 3.50" bore MLS (Multi-Layer-Steel) .030" thick head gaskets. SLS (Single-Layer-Steel) cylinder base gaskets and SLS rocker cover gaskets used in these sets are .020" thick and have .001" of high temperature viton rubber coating on both sides. Kit comes with all gaskets, seals and o-ring for a complete top end rebuild.
Fits: > 04-06 XL1200 (NU)
Valve Cover Gaskets for a leak free seal at a cost less than OEM
Made from high quality raw materials
Individually packed with cardboard backing
Honda Revere

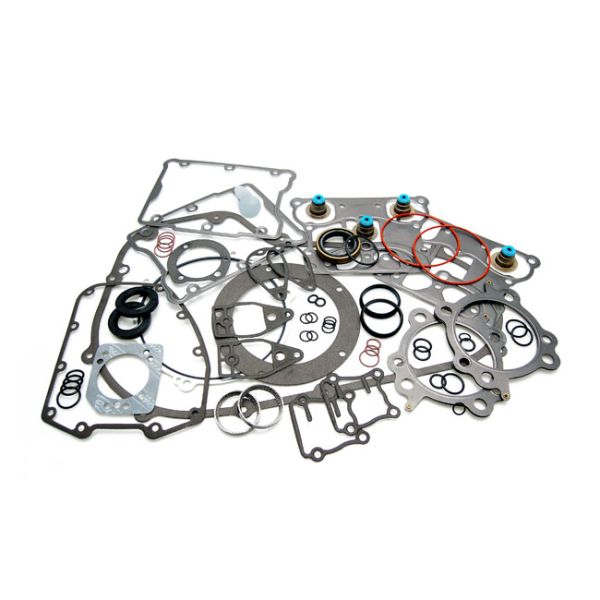

Cometic, EST motor gasket kit. 3-7/8" bore
This EST (Extreme-Sealing-Technology) gasket set is complete with all gaskets, seals and o-rings that are used on this model, including primary gaskets. It's the easy way to do a complete overhaul and have all gaskets that are necessary in one package to reassemble the engine. This EST gasket set contains MLS (Multi-Layer-Steel) .030" thick head gaskets which eliminates the use of dowel pin o-rings. Base gaskets are SLS (Single-Layer-Steel) .020" thick. They have .005" of high temperature Viton rubber on both sides and are the strongest on the market. Rocker cover gaskets are also .020" thick SLS. They will not weep, extrude, tear or become brittle over time. Exhaust gaskets will not hinder exhaust gas flow and will not fray into the exhaust port. Valve seals utilize Viton rubber and outer springs for a perfect seal. With 99-10 style breather gaskets
Fits: > 07-17 103" FLT/Touring (Excl. Twin Cooled) (NU)

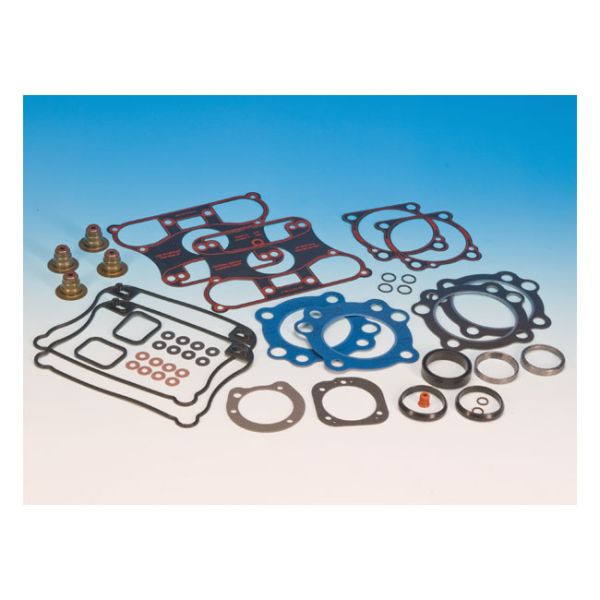

James, top end gasket kit. XL883/1200
With 0.045" head gaskets for both 883cc and 1200cc engines, RCM (Rubber Coated Metal) cylinder base, RCM lower rocker cover gaskets. Includes all other gaskets, seals and o-rings required for a top end rebuild.
Fits: > 04-06 XL883/1200 (NU)
Cometic, EST top end gasket kit. Twin Cam 4" bore
With MLS (Multi-Layer-Steel) .040" thick head gaskets. .010" SLS (Single-Layer-Steel) cylinder base gaskets. .020" SLS rocker cover gaskets. SLS gaskets have .001" of high temperature viton rubber coating on both sides. Kit comes with all gaskets, seals and o-ring for a complete top end rebuild. Note: Kit comes with 99-04 style valve seals and 99-10 style breather gaskets.
Fits: > 99-17 110" Twin Cam (excl. Twin Cooled) (NU)

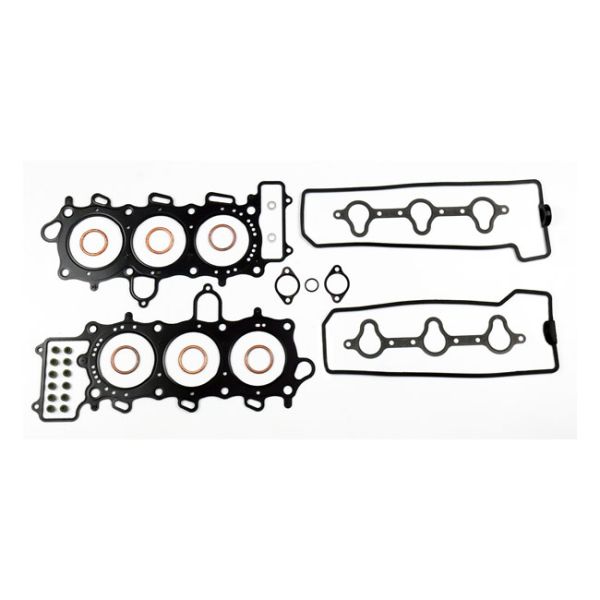

Athena, top end gasket kit
The Athena top end gasket kits include all necessary gaskets to rebuild the top end of the engine from the base gasket up. Kit includes all rubber gaskets, such as valve cover gaskets, o-rings and valve stem seal. High temperature blue silicon beading on most critical flat gaskets.
Fits: > Honda: 02-19 GL GOLD WING 1800cc
